[Questa] 윈도우 11에서 Questa / ModelSim 설치 방법 (Kor)

klue 2024. 4. 13. 03:29
반응형

Update : 2024.04.13

설치 소프트웨어 : Questa*-Intel® FPGA and Starter Editions

of Intel® Quartus® Prime Standard Edition Design Software Version 23.1 for Windows





Intel® Quartus® Prime Standard Edition Design Software Version 23.1 for Windows

Intel® Quartus® Prime Standard Edition Design Software Version 23.1 B991 for Windows

www.intel.com

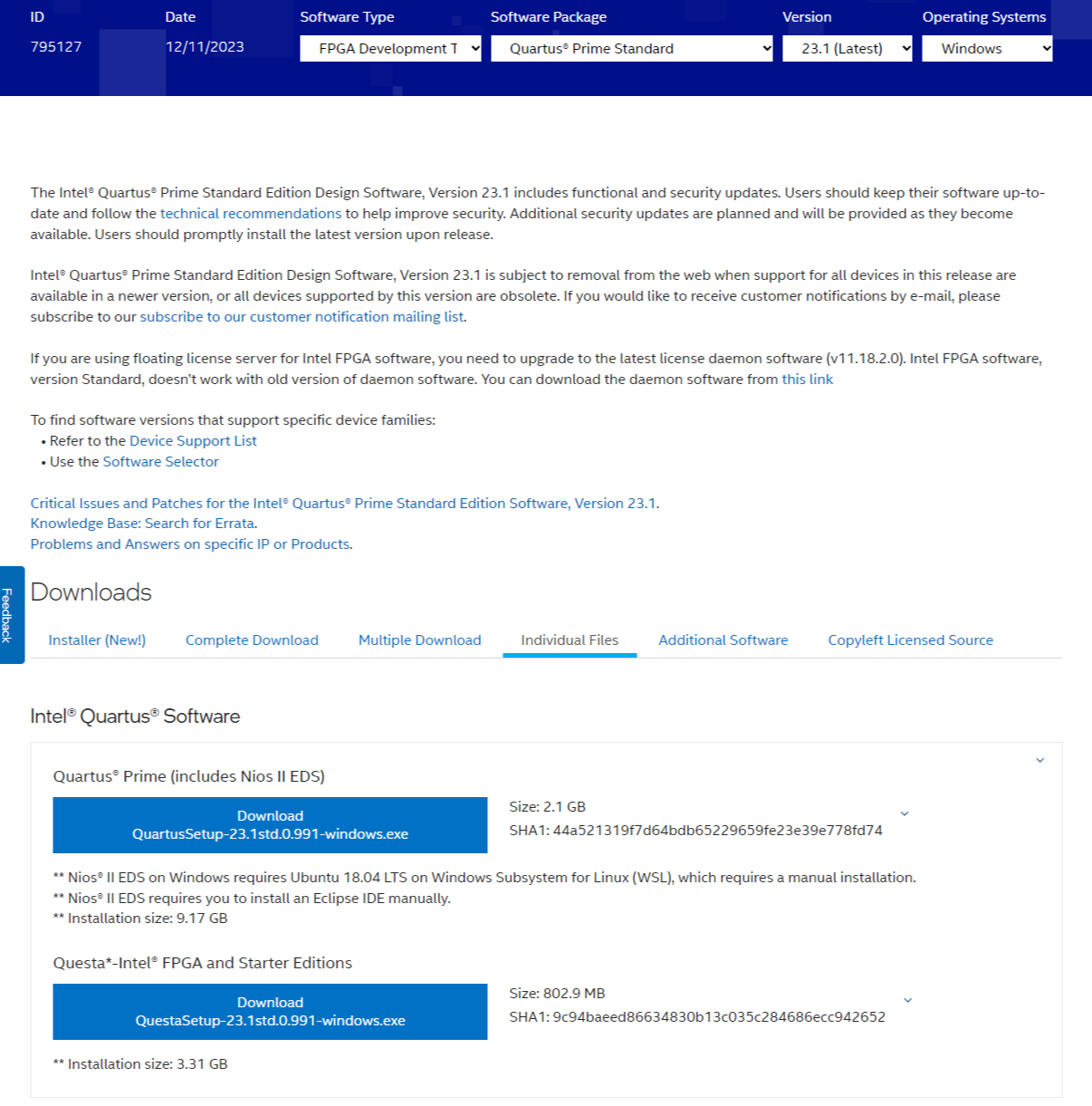

이 페이지에서 가장 최신 소프트웨어의 윈도우 버전을 다운로드 할 겁니다.



먼저, ModelSim은 Windows 11에서 지원하지 않습니다. 또한 ModelSim은 업데이트가 종료되고 Questa가 새로 릴리즈되었습니다. ModelSim에서 지원하지 않았던 OVM / UVM 용 SystemVerilog 또한 지원한다고 합니다. 그래서 우리는 Individual Files에서 Questa*-Intel® FPGA and Starter Editions를 설치할 겁니다.



**설치 경로에 한글이 있으면 안 됩니다!!**

아마 다운 받아서 설치하고 나면, 실행이 안 될 겁니다 (?)

대부분 환경 변수가 설정이 안 되어 있어서 그렇습니다.

환경 변수 설정을 위해서는 먼저 License 데이터가 필요합니다. 아래에 intel에서 제공한 환경변수 설정을 위한 license 발급 방법이 나와 있습니다. 따라가 보도록 하죠.



Follow these steps to generate the license:



5.4.3. Questa*-Intel® FPGA Edition and Questa*-Intel® FPGA Starter...



www.intel.com

1. Go to the Intel® FPGA Self-Service Licensing Center (SSLC).

  • 이 작업을 위해서는 먼저 Intel에 가입해야 합니다.
  • 가입하고 동일한 메일 계정으로 MS account도 들어가줍니다 (Azure Cloud를 사용해서 그런가 봅니다)

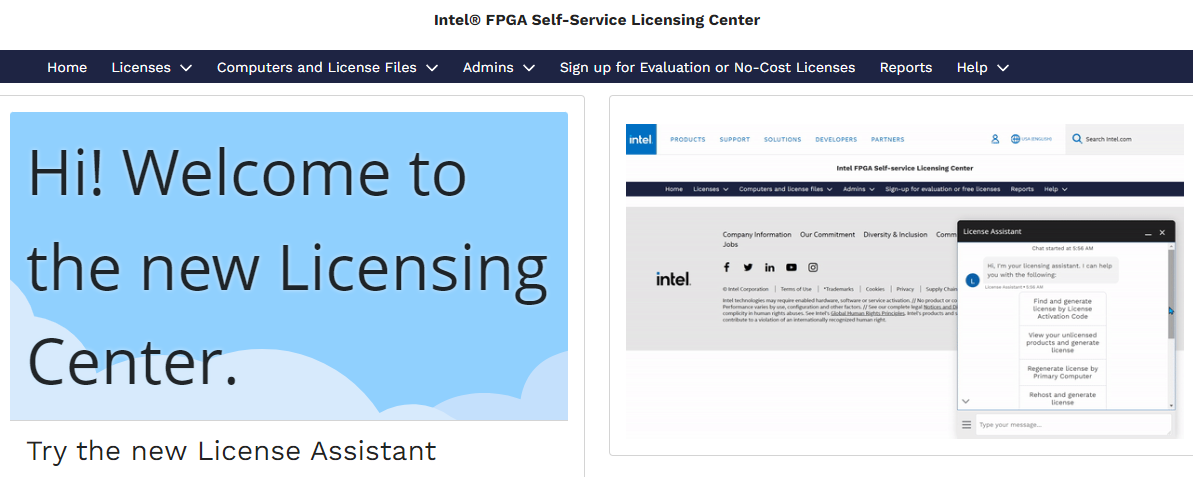

2. Select the Sign up for Evaluation or Free Licenses option on the menu bar.

  • 최신 화면은 아래와 같이 뜨는데, Sign up for Evaluation or No-Cost Licenses를 클릭합니다.

3. In the list of products displayed, select the Questa* Intel® FPGA Starter Edition SW-QUESTA option.

  • Questa* Intel® FPGA Starter를 선택하시면 됩니다. 이 친구의 License가 SW-QUESTA입니다.

4. Under the # of Seats column, enter the number of seats you require.
5. Read the license terms of use.
6. Select the "I have read and agree to the terms of use of this license as listed below" check box.

7. Click Get License. A popup window displays asking you to which computer should the license be assigned. You can use one of the following options:

  • Option 1: Click Create a New Computer if you want to assign the license to a new computer. You must provide information about the required hardware and license type. For information about the license type, refer to Intel® FPGA Software License Types. For information about how to extract information about your computer hardware, refer to Hardware Information Required When You Request a License.
  • Option 2: Click Assign an Existing Computer and search for the computer name/NIC ID that you have created previously in your My Intel® account. To view your list of computers, use of the following options:
  • Visit the License Assistant and select Regenerate License by Primary Computer > View all computers and select.
  • On the SSLC menu bar, click Computers and License Files and select the desired option.
  • License를 만들 때 컴퓨터를 등록해야 합니다. 아래와 같은 창인데, 컴퓨터 이름은 계정 이름으로 해주시면 됩니다.
  • License Type은 개인 컴퓨터라면 FIXED를 추천드립니다.
  • Computer Type은 NIC ID를 추천드립니다 (Network Interface Card).
  • Primary Computer ID에 ipconfig /all (명령 프롬포트에 입력하면 나옵니다)로 확인할 수 있는 마지막 문단의 물리적 주소를 - 없이 알파벳과 숫자만 연속해서 입력해주면 됩니다.

8. Click Generate. You receive an email with the license attached to your registered email address.
9. Save the license.dat file on your computer (for example, ~/intelFPGA_pro/LR-xxxxxx_License.dat).

위 과정을 전부 마무리하면 메일로 라이센스 데이터가 나옵니다! 그 파일 다운로드 받아주세요.



이렇게 라이센스 LR-xxxxxx_License.dat 파일을 Questa 설치를 했던 폴더에 넣고 윈도우에 시스템 환경 변수라고 검색을 하면 시스템 속성\고급\환경 변수가 바로 나옵니다. 먼저 LM_LICENSE_FILE 이름의 시스템 변수가 있는지 먼저 확인해주세요. 그 후에 시스템 변수(S)에 새로 만들기(W)를 하셔서

변수 이름은 LM_LICENSE_FILE

변수 값에는 라이센스 파일 경로를 입력해주면 됩니다.

제 경우에는 이렇습니다

C:\intelFPGA\LR-******_License.dat (*에는 파일 이름 그대로 입력해주세요)



환경변수 설정을 다 하고 Questa를 다시 실행해 보면, 아래와 같이 잘 나타나는 것을 확인할 수 있습니다!
